PT-02 Auto Pull Tester



                 As a welding equipment provider we have an ongoing policy to listen the feedback from our
               customers, and try our best to meet their needs. These feedbacks contribute to the birth of a new
               wire bond pull tester.

                      According to industry quality requirement, bond pull tests are routinely used to evaluate
               and control the mechanical strength of wire bonds in microcircuit devices.

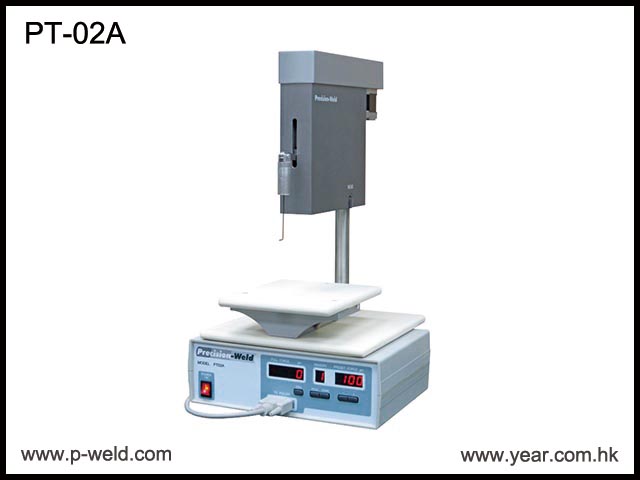

                      The “Precision-Weld” PT-02 is a motor drive automatic pull tester which is designed to
               perform wire bond pull tests in 20 gram to 1800 gram force range. Whole unit was controlled
               by a MCU so the pull speed can auto adjust and maintain constant in order to obtain more
               accurate reading.



            Features

          - Directly display and hold the reading of maximum pull force.

               - Automatically reduce pull speed and maintain constant before reach preset value.

               - Automatically return after wire break.

               - 9 memory slots provide instant change between different settings.

               - Presettable pull force and alert system.

               - All data can be recorded in computer through RS232 port for traceable and SPC purpose.

               Specifications:

Item
Description

PT02A
PT02B
    Power input 220V (110V) 50/60Hz ±10% 220V (110V) 50/60Hz ±10%
    Range 20gm - 1.8Kgm 20gm - 5Kgm
    Accuracy ±0.5% + 2 digits ±0.5% + 2 digits
    Pull Speed 15 mm/S. ~ 2.5 mm/S 15 mm/S. ~ 2.5 mm/S
