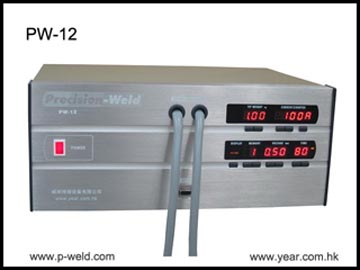

PW-12 Inverter Resistance Welder



 (Click to enlarge)


                       PW-12 is a high frequency inverter welder. It controlled by multi-processor and power IGBT, which                makes it possible to exercise precise control over applied voltage, pressure and current during each                operation.


               PW series Spot Welding Machine is a compact size lead free device capable of handling the welding                needs of very fine wires ranging 0.02mm-1.0mm.
               The product utilizes the principle of high temperature welding. Current flowing through the welding tip                creates a high temperature to burn off the wire insulation, and then continues through the exposed wire                and the metal base to weld the two together.
               Welding quality is assured by closed-loop control for welding voltage and current.
               PW-12 greatly reduce the training period of workers from weeks to just few hours. On the environmental                side, no chemical solvent and insulation removal is needed, which also saves costs and labour. The                device enjoys low voltage (<2.5V) operations and low energy consumption.

              Suitable for . . .
              - Replacement for soldering, especially suitable for miniature component.
              - Welding with enameled wires. No need for wire stripping.
              - Printed circuit board (PCB) repairs.
              - Welding assortment of electronic components and surface-mounted components.
              - Jobs requiring thin soldering layer.

              Unique Features:

             1. Electronic pressure sensing technology offers higher precision than comparable products with
mechanical pressure sensing technology.
             2. Quality of ordinary soldering or even welding jobs can only be visually estimated by tensile strengths.
Our unique current sensing and alert system ensures quality of each welded joint.
             3. Specially designed micro-controller unit (MCU) with 9 programmable weld schedules with sequential
             4. Independent welding current and voltage detect system.
             5. Key lock system setting prevents accidental changes, ensuring product quality.
             6. Single or Dual welding pulse output for different products.
             7. Presettable discharge counter and alert system.


                           Power Input                           220V
                           Welding Voltage                   0.2 ~ 2.0V
                           Welding Current                   10 ~ 1200A
                           Duty Cycle                              10%
                           Welding Time                         5mS ~ 9.9Sec.
